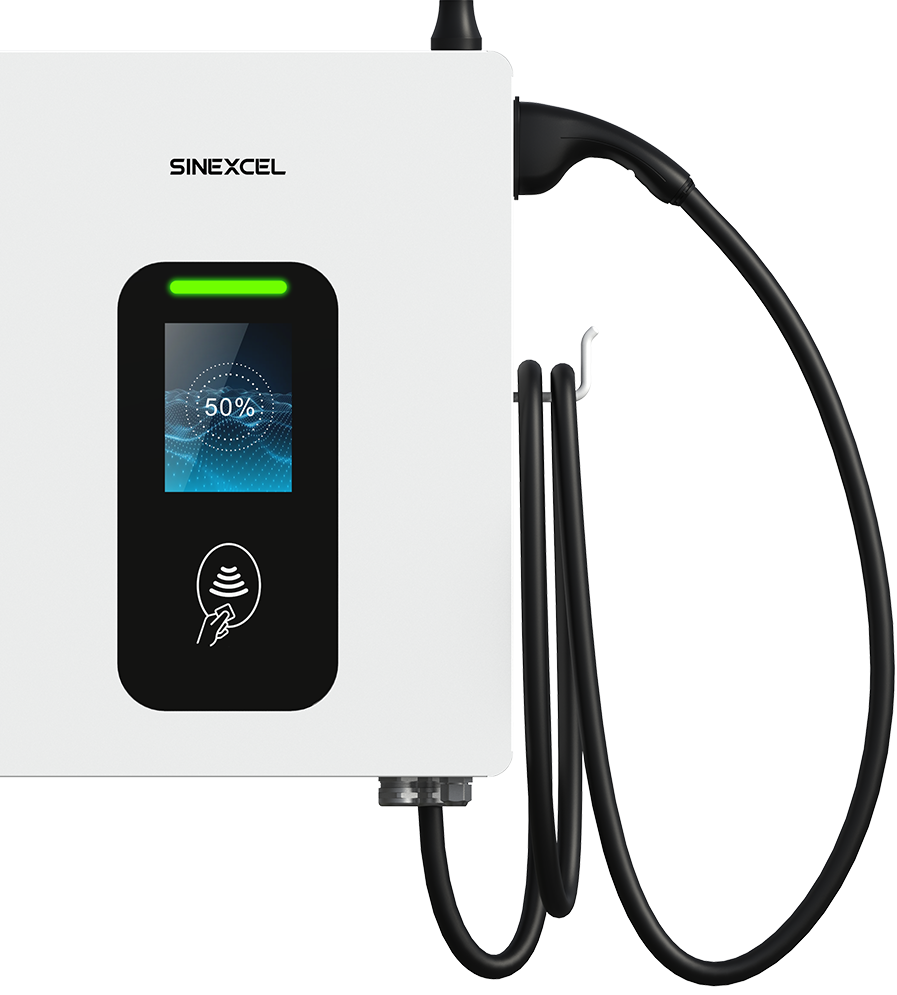

      SEC30
      Integrated Charger

      The SEC30 Integrated Charger adopts modular design and outstanding industrial design, is an ideal solution for Destination Charging(residential complexes, commercial parking lots), seeking a reliable and cost-effective charging infrastructure for electric vehicles. With its advanced user-friendly design and smart functions, SEC 30 can offer convenient and stable charging experience.

      View manual Contact us
      Retails
      Ideal for numerous applications
      SEC 30kW is the optimized option for Destination Charging, Fleet Charging and Retail Charging, etc.
      Shopping mall
      Fleets
      Workplace
      Garage
      Smart choice for
      destination charging
      SEC 30 is perfectly suited for the scenario of people staying for a few hours at the planned stops along the way, ready to charge EVs at an acceptable and reasonable time.
    • 3 hours
    • 56-70 kWh
    • 10%-70% SoC
      • Cost-effective Investment
      SEC30 offers faster charging speed than AC charger, and lower cost than high power DC charger
      Lower construction cost
      The SEC 30 charging station offers a cost-effective solution for installation. It can be mounted on pedestals or walls, reducing the need for expensive installation materials.

      Compared to higher power level DC charger, SEC 30 installation doesn't require additional machinery like forklifts, relying only on human resources.
      Space saving installation
      With a slim 200mm depth, the SEC 30 is ideal for installations against walls, maximizing space utilization.
      Lower maintenance requirements
      The modular design of the SEC 30 makes it easy to maintain. Any faulty power modules can be hot-plugged in or out, minimizing downtime.

      Sinexcel's self-developed power modules ensure reliable performance and reduced maintenance needs.Maximum
      ROI
      The SEC 30 charging station offers a low investment option for DC charging businesses compared to higher power alternatives.

      The reduced upfront costs contribute to a faster return on investment, making it an attractive choice for businesses aiming to enter the EV charging market. Minimum investment for DC charging business compared to higher level DC charging products.
      Powerful output in a compact enclosure
      With its smaller footprint, it can provide a more compact and space-saving solution for EV charging needs
      For End Users
      it is easy to install with flexibility and deliver sufficient supply to EVs of the family
      For Distributors
      order bulk with low purchase price as well as save the transportation cost and storage space
      For CPOs
      SEC 30 is a quick kick start to deploy DC charging network with lower investment
      Intelligent and
      futureproof design
      Seamless Over-the-Air Updates
      The SEC 30 charger can be updated over-the-air, providing easy access to new features and ensuring that it is always up-to-date with the latest technology.

      This feature enables quick and effortless software upgrades without requiring physical access to the charger, saving valuable time and resources.
      Adaptable Voltage Range
      The SEC 30 charger boasts a wide output voltage range of 50V-1000V, making it adaptable to future electric vehicle models.

      This feature ensures that the charger can support a diverse range of EVs, providing greater convenience and accessibility for EV owners.
      Dynamic Load Management
      The SEC 30 charger is equipped with dynamic load management capabilities, allowing it to efficiently adjust charging speeds based on available power.

      This feature ensures that the charger can operate reliably in sites with limited electrical capacity, preventing power overloads and reducing the risk of downtime.
      Key Features
      User friendly deisgn
      Visualized charging status with 8 inch LCD touch screen and LED pilot lights.
      IP55, IK10 protection ratings
      Durable weatherproof enclosure for indoor or outdoor installation and use
      Comprehensive protection functions
      Undervoltage protection, Overvoltage protection, DC Overcurrent protection, Over-temperature protection, Surge Protection Device, Emergency Stop Protection， etc.
      Installation methods
      The installation options include wall-mounted, pole-mounted, and portable configurations.
      Connector options
      Support single-connector, is captible with CCS2 80A, CCS2 125A, and CHAdeMO 80A charging connectors
      Certificate & Quality Assurance
      Certifications:
      Standards:
      IEC 61851, IEC 62196, DIN 70121, ISO 15118
      Customer Support:
      Sinexcel expert team quick response
      Rapid on-site service
      Remote technical support
      Spare parts management
      Technical specifications
      30kW Integrated Charger
      Input
      Characteristic
      		 Input voltage380 VAC +/- 10%
      Input frequency50 / 60 Hz
      Input type3P + N + PE
      Input current50A
      Input power33kVA
      Power factor0.99
      THDi<5%
      Grounding typeTN-S, TN-CS
      Output
      Characteristic
      		 Connector optionsSingle connector, CCS2 or CHAdeMO
      Output voltageCCS2: 50-1000 Vdc
      CHAdeMO: 50-500 Vdc
      Maximum output currentStanddard CCS2: 80A
      Rated powerDC: 30kW
      Peak efficiency96%
      Environment
      		 Operational altitude<2000 m
      Operational temperature-25 °C to +50 °C (Full power)
      Temperature derating Up to 50 °C: 100% output power,
      50-65 °C interval, linear power limit,
      65 °C or more, module shutdown protection.
      Storage temperature range-30 °C to +70 °C
      Humidity5 %-95 % Rh non-condensing
      Structure
      		 IP and IK ratingIP55/ IK10
      DimensionsW550mm*D700mm*H200mm
      Weight≤65 kg
      Others
      		 Communication interface4G / LAN Port
      LanguageEnglish (Support customizing other languages)
      Communication protocolOCPP1.6J, OCPP 2.0.1 upgradable
      Cooling methodAir cooled
      Payment mothodRFID/APP/Credit card
      EMCClass A (industrial)
