      • Power Conversion System

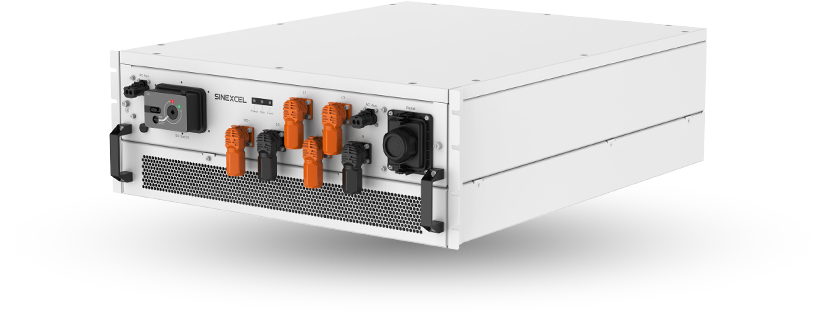

      Sirius 135K
      The Next Generation Value-driven ESS & Microgrid Solution
      Solving C&I Storage Pain Points:
      Adaptability & IRR
      Grid Connection Complexity
      • Substantial power environment variability
      • Diverse regulatory standards
      • Inconsistent power quality
      Various Load
      • High load count risks system instability
      • Diverse load types complicate system adaptation
      • Variable operating conditions impede ROl growth
      Harsh Environments
      • Vulnerable to adapt in desert, island, mountain, extreme cold, and heavy rain conditions
      Uneven Investment Returns
      • High CAPEX & OPEX, low efficiency
      • Limited commercial value
      Unleashing Value Across the Lifecycle
      Global-Ready
      A single solution for worldwide deployment
      Multi-voltage Adaptation
      • Compatible with battery systems up to 1000Vdc
      • Transformerless interconnection with 208Vac/ 400Vac/ 480Vac 3P4W directly
      Multi-certification Coverage
      • Certified to UL, IEC, EN, JET, and VDE standards
      Scenario-Ready
      Tailored for diverse C&I applications
      Energy-intensive Industrial Parks
      • PCS Efficiency > 98%
      • 100% unbalanced load support
      • Harmonic adaptation ≤ 25%
      Microgrid/ Off-grid Islands
      • 100+ units off-grid parallel operation via proprietary communication
      • Diesel-BESS hybrid for secure, efficient, and low-cost operation
      Large-scale Events
      • Seamless microgrid formation to
        ensure grid continuity
      Extreme Environments
      • 50℃ full power operation<
      • IP65 rating
      • C5 corrosion protection
      Lifecycle-Ready
      Driving Long-term value through innovation
      Material Innovation
      • SiC with ultra-low magnetic losses integration technology for enhanced efficiency.
      Structural Innovation
      • HV cabinet integration, saving €253 per unit Schneider switchgear integration reduces its energy consumption by 90%
      Architecture Innovation
      • Next-gen 500kW Solution transformerless Design Saving €5,000 per cabinet
      Data Download
      Contact us: brand@sinexcel.cn
      Specification parameters
      • ModelPWS1-135M
      • Nominal Power135kW
      • AC Connection3P4W
      • AC overload capacity1.1 times long-term, 1.2 times 1-minute
      • AC Voltage400/480（-15%~15%）Vac
      • AC Frequency50/60 (-5~5) Hz
      • AC PF0.99/-1~1
      • DC Voltage Range600V~1000Vdc @400Vac
        720V~1000Vdc @480Vac
        600~1000Vdc @208Vac @70kW
      • DC Current193A
      • Nominal Power Efficiency98%
      • Dimensions (width × height × depth)720*265*960mm
      • Operation Temperature-40 °C ~ 60°C (>55℃ derating）
      • CommunicationRS 485，Ethernet，CAN
      • Communication ProtocolModbus TCP/RTU,IEC 104,CAN 2.0
