      • SEC 1280kW Distributed Charger

      introduce interesting video download Back
      SEC1280
      Distributed Charger
      The SEC Distributed Series DC Charger delivers up to 1280 kW with maximum 16 connectors, and offers flexible configurations tailored for diverse operational scenarios, such as fleet operations, bus charging, and highway station applications.
      View manual
      Contact us

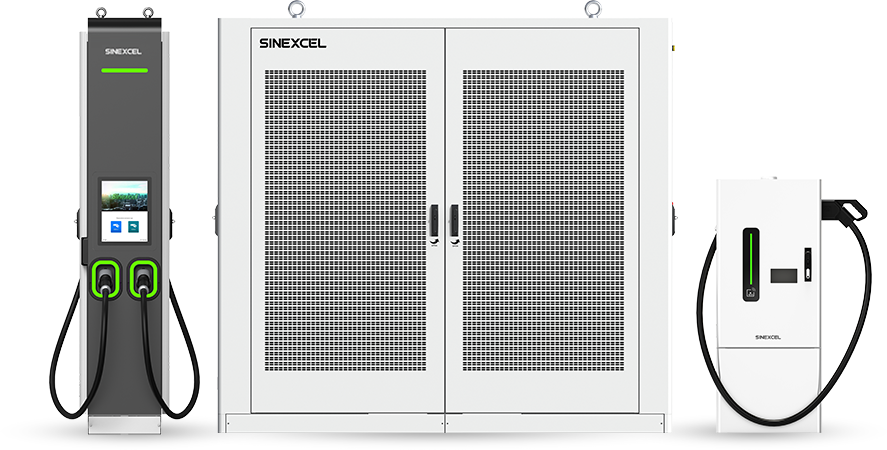

      Product Configuration

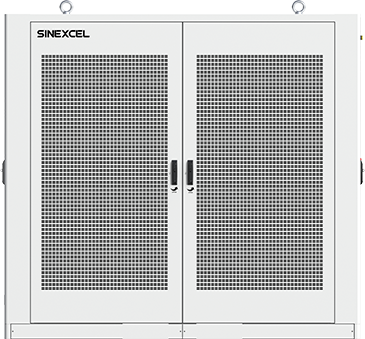

      Power Bank
      Rated output power of 960kW or 1280kW Equipped with SINEXCEL self-developed power modules, allowing the charging system's power to be adjusted by adding or removing modules

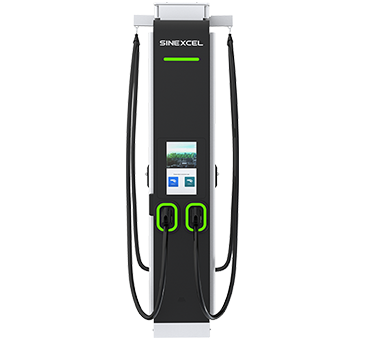

      Dispenser
      Continuous charging at 500A Max. 600A output Connector combination: 350A+350A, 500A+500A, 500A+350A

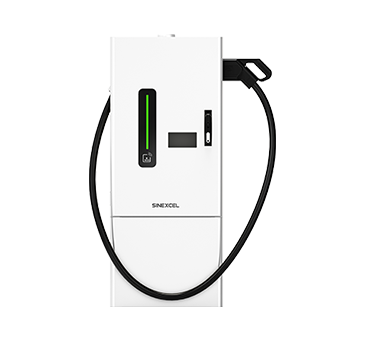

      Suspended Dispenser
      Max. 200A output Support wall-mounted, gantry mounted and pedestal solutions
      Ultra Wide Output Voltage & High Efficiency
      Output voltage range of 200V to 1000V, capable of charging high-voltage vehicles on the market, compatible with various passenger and commercial vehicles, and meeting future charging trends.
      96.3%
      Peak Efficiency
      95%
      Average Efficiency
      Design For Various Charging Scenarios
      Versatile Configuration:
      The product lineup is comprehensive, offering a range of dispensers, allowing it to adapt to various scenarios.
      Bus Depot
      Highway Charging Station
      Fleet
      High Power Output
      The dual-connector dispenser is equipped with two liquid-cooled connectors,
      enabling simultaneous charging for two heavy duty trucks.
      10 minutes charging, 400km driving
      Flexible Power Switching
      The power bank flexibly distributes power to maximize power utilization, while the charging
      connectors intelligently output power based on charging requirement of electric vehicles.
      Requirement
      Allocation
      Eichrecht
      Approved
    • The first Eichrecht-certified megawatt charger product in the industry
    • Validate the accuracy and transparency of charging data measurement and billing
    • Comply with Germany's requirements for charging stations in public operation sites
      • Cable
      Management
      System
    • Make the cable lighter to save effort for easily use
    • Keep the cable clean and organized
    • Minimize friction and prevent hazards
    • Increase durability and user safety
      • Key Benefits
      Versatile Charging Solutions:
      Supports a variety of solutions including liquid-cooled dispensers, natural cooled dispensers, and suspended dispensers, offering flexibility for different scenarios.
      Increase Resource Utilization:
      Simultaneously charges up to 16 vehicles with minimal downtime, significantly improving station turnaround efficiency.
      User-friendly Design:
      Features a cable management system and a barrier free design for easy operation.
      Cost-effective Product Upgrading:
      Flexible configuration with multi-spec power banks and dispensers, and has ability to upgrade to MCS while maintaining compatibility with the existing power banks .
      Technical Specifications
      itemParameter
      Power bank
      		 Rated output power960kW,1280kW
      Input Voltage Range400(±10%) @ 50 Hz
      DC Output Voltage200-1000V
      Power Factor0.99
      THDI≤5 %
      Peak Efficiency96.3%
      Maximum Output quantity16 connectors
      ProtectionLightning protection
      Emergency protection
      Overload protection
      Short-circuit protection
      Leakage protection
      Overcharge protection
      Over/Under voltage protection
      Reverse connection protection
      Over temperature protection
      Operational altitude≤2000 m
      Operating temperature-25 °C to +50 °C (Full power)
      Humidity5 %-95 % Rh non-condensing
      IP/lK degreeIP55/IK10
      DimensionW2300*D1100*H2100 mm
      Weight≤2000kg
      CertificateCE
      Dispenser
      		 Output voltage200~1000V
      Rated output powerUp to 1000kW
      Maximum current per connectorCCS2(Conventional cooling):350A(boost to 500A);
      CCS2(Liquid cooling):500A(boost to 600A)
      Connector combination350A+350A:500A+500A:500A+350A
      Cable length5m/7m(optional)
      Screen15" HD touchscreen
      User AuthenticationCredit Card, QR Code, RFlD Card, Autocharge
      ConnectivityEthernet/GSM,4G
      LanguageEnglish (Support customizing other languages)
      Barrier free designYes
      SizeW450*D800*H2100 mm
      Protection LevelIP55/IK10
      Weight≤270kg
      Backend communicationOCPP 1.6J(OCPP 2.0.1 available in 2025)
      EVcommunicationDIN70121.ISO 15118
      StandardsIEC 61851-1.IEC 61851-23.IEC 61851-21-2
      CertificateCE,RCM, Eichrecht, MID compliant, OCA1.6
      Suspended Dispenser
      		 Output voltage200~1000V
      Rated output powerUp to 200kW
      Maximum current per connectorCCS2(Conventional cooling):200A
      Cable length5m/7m(optional)
      User AuthenticationRFID Card, Autocharge
      ConnectivityEthernet/GSM.4G
      SizeW500*D200*H800 mm
      Protection LevelIP55/IK10
      Weight≤50kg
      Backend communicationOCPP
      EVcommunicationDIN70121.ISO 15118
      StandardsIEC 61851-1,IEC 61851-23,IEC 61851-21-2
      CertificateCE
