      • Ultra Series
      Active Harmonic Filter
      The revolutionary SiC Mosfet technology has driven the design optimization of power quality products, which delivering unparalleled improvements in performance and application of Sinexcel Ultra Series. This transformation has reshaped the business model for power quality solutions, setting a new industry benchmark for excellence.
      View manual Contact us
      Ultra Series
      Active Harmonic Filter
      The revolutionary SiC Mosfet technology has driven the design optimization of power quality products, which delivering unparalleled improvements in performance and application of Sinexcel Ultra Series. This transformation has reshaped the business model for power quality solutions, setting a new industry benchmark for excellence.
      View manual Contact us
      SINEXCEL ULTRA AHF
      Revolutionary
      SiC Mosfet Technology
      View manual Contact us
    • LIGHTER
    • SMALLER
    • HIGHER EFFICIENCY
      • Performance breakthrough brought by SiC technology
      • 99%
        Ultra high efficiency
      • 97%
        Enormous harmonic compensation rate
      • ≥165CFM
        Less ventilation requirement
      • ≥18KG
        Tiny dimension but huge capacity
      Industry application breakthrough brought by Ultra Series
        Flexbile
        Top-Vent Cabinet
        Carton
        packaging
        Potting
        Protection
        Automatic
        fine-tuning
        Resonance
        suppression
        THDu
        mitigation
        Package
        PQ solution
        Easy
        Maintenance
      Ultra High Efficiency
      Performance breakthrough brought by SiC technology
      Silicon carbide (SiC) MOSFETs achieves ultra-high efficiency primarily due to their wide bandgap, which leads to lower on-state resistance (Rds(on)), faster switching speeds, and reduced switching losses. These properties enable SiC MOSFETs to operate at higher frequencie and temperature with improved overall performance, resulting in more efficient power conversion systems
      What benefit will be brought to user with 99% ultra high efficiency?
      Electricity bill saving, higher ROI

      Energy Saving Calculator

      *
      *

      Energy savings: _____ KWh per year

      Money  saved  : _____ per year

      Tiny dimension but huge capacity
      Performance breakthrough brought by SiC technology
      High heat resistance, high thermal conductivity, and high switching frequency, these advantages of SiC bring lower heat dissipation and less ripple current output to Ultra Series AHF. With the physical upgrade of this key component and the 3-year deep research of the R&D team, Sinexcel realizes the ultra-high integration design in Ultra Series AHF
      Less Ventilation Requirement
      Performance breakthrough brought by SiC technology
      The drift region of SiC can be made thinner so it has high heat resistance and high thermal conductivity. This advantage make the Ultra Series AHF produce less heat so the heat dissipation is lower.

      The low thermal demands of these SiC active filter modules make them particularly suitable for use in high IP-rated cabinets. Since they require less cooling airflow, they can operate effectively within the confined and sealed environment of these cabinets without the risk of overheating.
      IP54 800*600*2200mm
      inside 3pcs Ultra AHF modules
      Against wall installation
      Ventilation from bottom to front
      IP54 800 *358 *770
      inside 1pcs Ultra AHF
      (Range from 25A~150A)
      25A~300A module installation
      Ventilation from bottom to front
      Flexible cabinet power density upgrade
      Performance breakthrough brought by SiC technology
      Flexible Cabinet

      Each cabinet maximum supports 8*Ultra modules inside
      One 7-inch HMI can control 16 modules maximum（2 cabinet, 2400A）
      Ventilation from front to rear
      Standard IP grade is IP20, but supports the customerized IP grade solution;
      Module hybrid application
      Flexible Cabinet

      Each cabinet maximum supports 8*Ultra modules inside
      Maximum capacity up high to 1200A (8*150A)
      Ventilation from front to rear
      Standard IP grade is IP20, but supports the customerized IP grade solution;
      Top-Vent Cabinet
      Industry application breakthrough brought by Ultra Series
      More optional for user; More suitable for reconstruction projects
      Top-Vent Cabinet
      High power density cabinet that can be installed against the wall, space saving for distribution room

      Ventilation from front to top

      Standard IP grade is IP20, but supports the customerized IP grade solution;
      800*600*2200 25A-150A, 4 units in max (Ultra)
      1000*600*2200 25A-150A, 5 units in max (Ultra)
      1200*600*2200 25A-150A, 6 units in max (Ultra)
      Enormous harmonic compensation rate
      Industry application breakthrough brought by Ultra Series
      SiC technology brings much higher switching frequecncy (the average of 40KHz and maximum up to 95KHz) to Ultra Series AHF. With the high switching frequency and Sinexcel unique algorithm design, Ultra Series AHF realizes the enormous harmonic compensate rate.
    • >97%

      Harmonic compensation rate

    • >95%

      High harmonic compensation rate (31st~51st)

    • >95%

      Even harmonic compensation rate

      • Automatic fine-tuning
      Industry application breakthrough brought by Ultra Series
      Sinexcel Ultra Series AHF updates the software algorithm and when CTs are at the source side, this makes the AHF realizes the closed-loop design; The unique algorithm can automatically identify and correct the compensation output result, and the process without manual adjustment. The automatic fine-tuning realizes automatic adjusts THDi<5% and the whole process can be completed within one minute;

      Easy software operation, and simple hardware installation. Only power cables and a set of CT to set up Ultra Series AHF. The Automatic fine-tuning function realizes intelligent and excellent compensation effects, bringing users a simple and efficient commissioning experience.

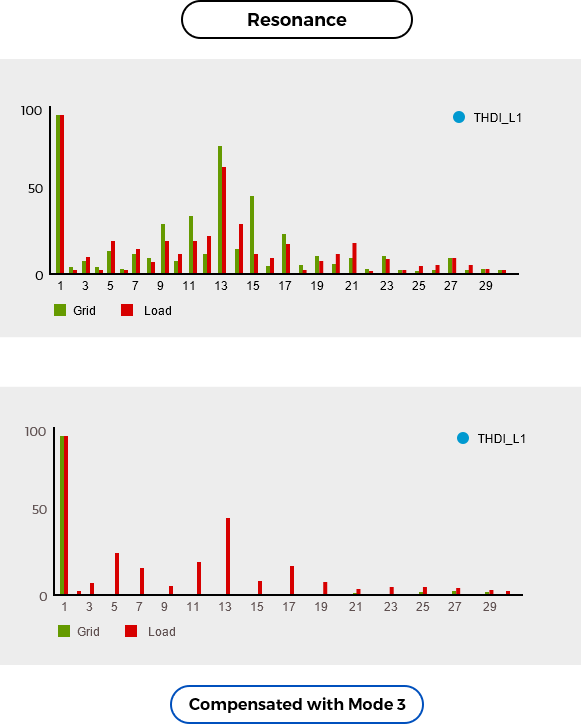

      Resonance suppression
      Industry application breakthrough brought by Ultra Series
      Unique Intelligent Fourier Technology
      In the process of solving power quality problems, how to solve the resonance is the direction that the industry has been focusing on; when the system resonates, it will generate a voltage several times higher than the power supply. And will be applied in the capacitors, transformers, circuit breakers, and other equipment in the circuit, even causing insulation damage to high-voltage electrical equipment;


      Since 2017, Sinexcel had designed resonance suppression by the unique intelligent Fast Fourier Technology and had been the industry-leading in resonance suppression technology. This technology ensures the normal and stable operation of the system and avoids the harm of resonance for the user.


      In 2022, after several years of persistent research and development, Sinexcel’s R&D team launched the resonance algorithm 2.0. Based on resonance suppression, it broke through resonance compensation, achieved the requirement of THDi<5%, output perfect sine waves, and brought excellent power quality for the user.
      THDu mitigation
      Industry application breakthrough brought by Ultra Series
      Extreme voltage distortion can cause multiple zero crossings for the voltage wave. For equipment where proper sequencing of operations depends on a zero crossing for timing, voltage distortion can cause misoperation. And 5th harmonic voltage distortion can cause serious problems for 3-phase motors.

      Sinexcel Ultra Series AHF through the development of the voltage detection circuit to realize THDu compensation.

      And re-designed the hardware, successful to achieve the zreo CT to compensate THDu.

    • Material saving
    • Simple operation
    • Excellent performance
      • Classification Society Standard Requirements
      Additional highlights of
      Sinexcel Ultra AHF
      Easy maintenance
      Hiher integration, simpler replacement
      Single-plate structure, the New can finish maintenance Ultra AHF within 20mins
      Potting Protection
      Higher Protection of PCBA boards
      Special glue is used inside the Ultra Series AHF, and brings better anti-corrosion and anti-conductive dust performance. This makes the Ultra Series AHF able to survive in harsh environments and increase its lifespan.
      Carton packaging
      Easy transportation
      The ultra-tiny size and weight make it possible for Ultra Series AHF to replace the bulky wooden box with light carton packaging.

      Carton packaging of Sinexcel Ultra Series AHF saves the space in client's warehouse. Same capacity but space occupied great reduction

      Carton packaging of Sinexcel Ultra Series AHF makes it easy for transportation and movement, so transportation cost is saved greatly.

      Carton packaging of Sinexcel Ultra Series AHF simplifies the packaging and saves unnecessary unpackage time during installation
      Sinexcel Ultra Series AHF
    • System parameters
    • Performance indicators
      • Rating 50/60A 75A 100A 150A 300A
      Function Harmonic, reactive power and three-phase unbalance compensation
      Nominal Voltage 380/400/415V（228-456V）
      L-N Voltage 220/230/240V (132-264V)
      Nominal Frequence 50/60Hz, auto sensing（Range : 45Hz～62.5Hz）
      Parallel Quantities Unlimited
      Efficiency 99% 98.5%
      Connection Type 3 Phase 3 Wire / 3 Phase 4 Wire
      CT Location Load / Supply side
      Rating50/60A75A100A150A300A
      Control AlgorithmFFT, intelligent FFT, and instantaneous reactive power
      Filtering Range2nd to 50th, selectable for each order, amplitude ajustment
      Advanced Control AlgorithmResonance suppression, compensation performance software auto-tuning, no CT connection for THDu compensation
      Filter Performance> 97%
      Even Harmonic Filter Performance> 97% > 95%
      Zero-Sequence Filter Performance3 times capacity compensated, >97%.
      Reaction Time< 50us
      Overall Response Time< 5ms
      Target Power FactorAdjustable from -1 to +1
      Switching FrequencyAverage 40kHz,up to 95kHz
      Cooling Air Requirement180CFM165CFM240CFM480CFM
      Noise Level<60dB (Full load)<60dB (Full load)<65dB (Full load)<68dB (Full load)
      Communication PortsRS485 and Ethernet port(RJ45)
      Communication ProtocolModbus RTU, TCP/IP
      Module Display Interface4.3-inch HMI(module), 7-inch HMI(central monitor) and LED
      Protection FunctionsOver-voltage protection, under-voltage protection, inverter bridge inverse protection, over-compensation protection and so on
      Mounting TypeWall-mounted, Rack-mounted and CabinetWall-mounted and Rack-mounted
      Dimensions500*470*88500*520*88500*520*100500*646*220
      Net Weight24kg27kg31kg63kg
      Operating Temperature-10℃～40℃ (may derate capacity if ambient temperature exceeds 40℃)
      Relative Humidity5% to 95%, non-condensing
      Operating Altitude≤1500m, 1500-4000m, capacity is derating 1% for every 100m altitude increased.
      RatingIP20 (IP grade can be customizable)
      RatingCE CE (400V type AHF)
