      • SEC Series 640kW

      introduce interesting video download back to

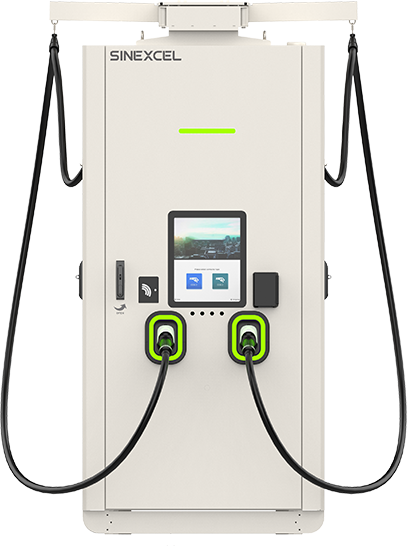

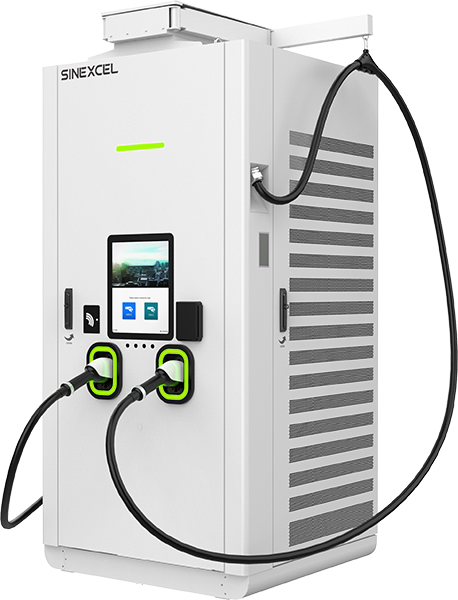

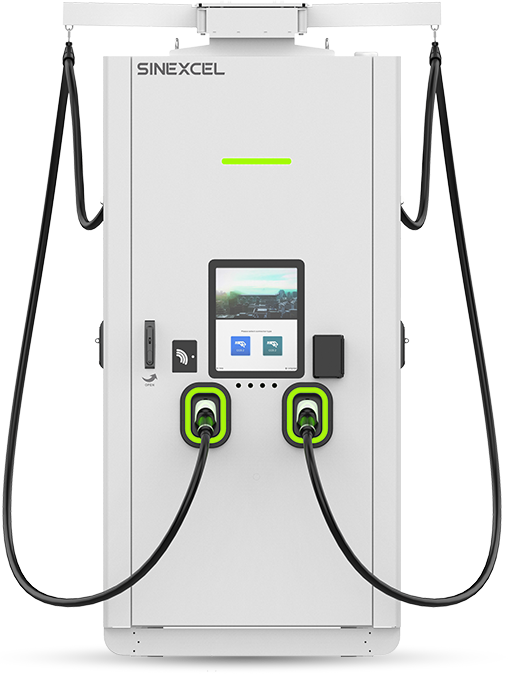

      SEC Series 640kW
      The SEC640kW charger is the industry's largest all-in-one charger, offering premium operation and breakthrough expandability. Its intelligent design delivers high power and performance while significantly reducing infrastructure costs, providing unmatched scalability and TCO advantages.
      View manual
      Contact us

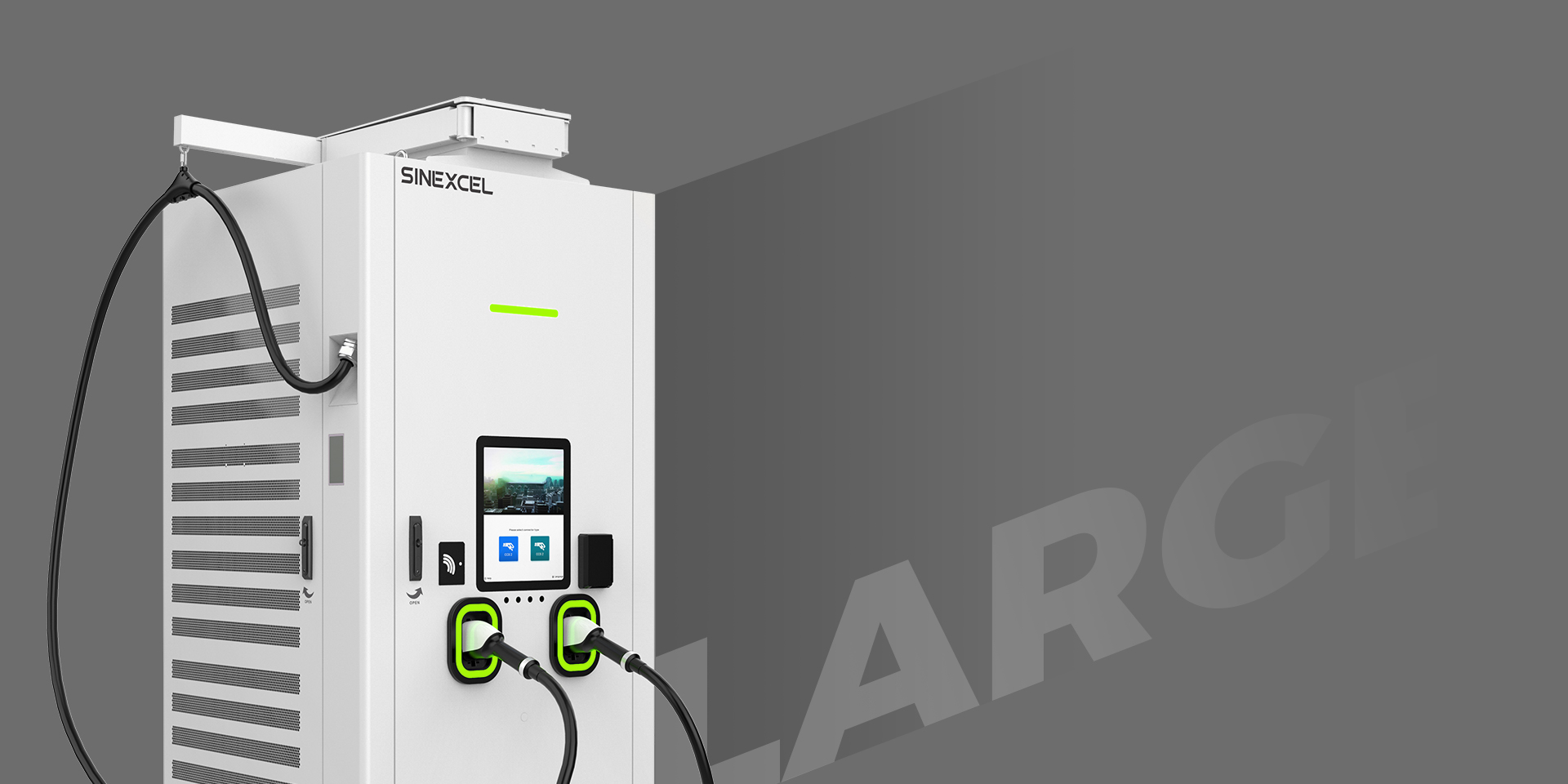

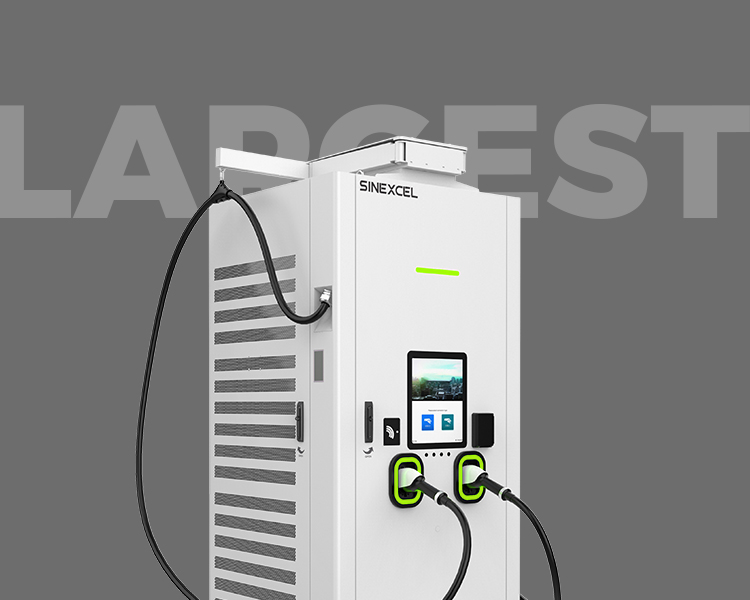

      Industry’s Largest
      Single Cabinet Power
      With the highest single-cabinet power output in the industry, this charger is engineered to meet the fast and reliable charging needs of both commercial and passenger vehicles. Its design supports constant high power and large current output, making it ideal for large fleets and high-demand environments. Whether it's for daily fleet operations or high-traffic locations, this charger ensures continuous, efficient performance under heavy usage.

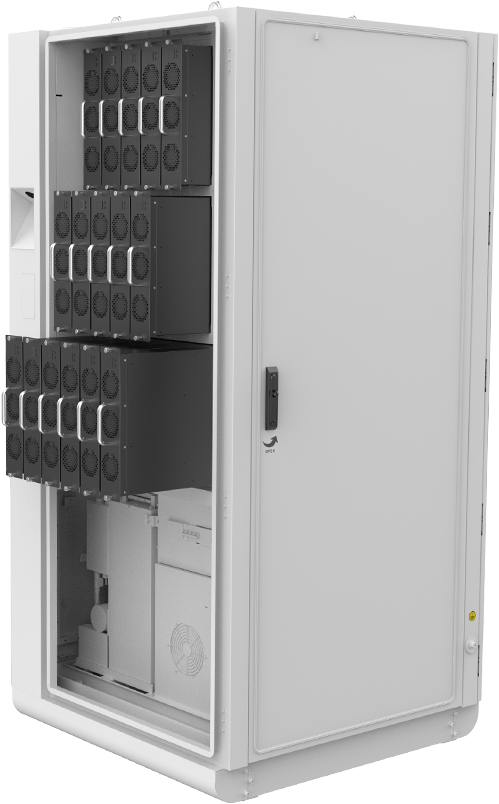

      Modular Architecture for
      Flexible Power Ranges
      This charger utilizes a modular architecture, supporting a flexible power range from 400kW to 640kW. This adaptability ensures it can meet the diverse energy demands of various vehicle types, while its scalability makes it an ideal solution for future-proof installations and the evolving needs of the market.
      Modular architecture
      400kW to 640kW
      Flexible Configuration to Meet Your Needs
      The 640kW charger is designed for maximum versatility. It can function as an integrated charger for fast power delivery, or it can be configured as a power bank, supporting up to 4 connectors, enabling simultaneous charging of multiple vehicles, which boosts overall charging throughput and enhances operational efficiency for flexible power adjustments.
      SCENARIO 1 SCENARIO 2
      PLUS
      +2
      Ultra Fast Charging
      640kW Integrated Charger
      Dual liquid cooling & air cooling connectors available
      500ALiquid Cooling
      Boost 700A
      350ANatural Cooling
      Boost 500A
      CCS Dispenser
      Liquid Cooling
      Maximum
      Current
      700A
      Continous
      Current
      500A
      Natural Cooling
      Maximum
      Current
      500A
      Continous
      Current
      350A
      Charging Applications
      Fleet Charging
      Construction Equipment Charging
      Highway Charging
      Optimized Lifecycle Cost
      High Conversion Efficiency
      Powered by In-House Developed SIC Power Modules
      Peak efficiency 96.2% Average efficiency 96.1%
      Our solution delivers significant long-term electricity cost savings.
      7.02kWh
      Each 640kW EV charger reduces energy loss by 7.02kWh per hour
      15,374 kWh
      Save 15,374 kWh of energy annually by charging for 6 hours a day
      Low TCO
      Across the Entire Value Chain for Long-Term Value Creation
      Lower Installation Costs:
      The SEC640 charging system cuts cabling and infrastructure expenses compared to traditional 320kW cabinet solutions.
      O&M Platform:
      Benefit from easy maintenance and remote monitoring, maximizing uptime and convenience.
      User-Centered Design for Enhanced Convenience
      Cable Management System
      Equipped with a Cable Management System (CMS) that organizes charging cables and minimizes wear, enhancing user convenience and extending the lifespan of cables
      Cable Management System
      Equipped with a Cable Management System (CMS) that organizes charging cables and minimizes wear, enhancing user convenience and extending the lifespan of cables
      Easy and Intuitive Operation
      Featured physical buttons for easy control, multiple payment options, and a straightforward charging process, ensuring a hassle-free experience for every user.
      Easy and Intuitive Operation
      Featured physical buttons for easy control, multiple payment options, and a straightforward charging process, ensuring a hassle-free experience for every user.
      Barrier-Free Design
      Complying with European accessibility act the charger ensures top-level accessibility and ease of use for all users.
      Barrier-Free Design
      Complying with European accessibility act the charger ensures top-level accessibility and ease of use for all users.
      TECHNICAL SPECIFICATIONS
      INPUT
      CHARACTERISTIC
      Input voltage
      400 VAC +/- 10%
      Input frequency
      50 / 60 Hz
      Input type
      3P + N + PE / 3P + PE
      Max Input current
      1160A
      Max Input power
      685kVA
      Power factor
      0.99
      THDi
      <5%
      Grounding type
      TN-S, TT, TN-C-S
      OUTPUT
      CHARACTERISTIC
      Connector options
      CCS2
      Connector quantity
      2 (Up to 4 connectors with extra dispenser)
      Output voltage
      CCS2: 200-1000 Vdc
      300~1000V is the output voltage of constant power output.
      Maximum output current
      CCS2: 500A (Liquid cooled @ continuous charging)
      CCS2: 350A (Natural cooled @ continuous charging)
      Switching step
      160kW
      Rated power
      DC: 640kW
      Peak efficiency
      96.2%
      ENVIRONMENT
      Operational altitude
      <2000 m
      Operating temperature
      -30 °C to +50 °C
      Humidity
      5 %-95 % Rh non-condensing
      STRUCTURE
      IP and IK rating
      IP54/ IK10
      Dimensions
      W990mm*D990mm*H2000mm
      Weight
      ≤850 kg
      Installation
      Outdoor floor mounted
      COMPONENTS
      Cable length
      5m (Exposed from the charger)
      Screen
      15" HD touchscreen
      RFID Reader
      ISO 14443 A + B to part 4 and ISO/IEC 15693, Mifare1, NFC
      OTHERS
      Communication interface
      Ethernet/GSM, 4G
      Language
      English (Support customizing other languages)
      Communication protocol
      OCPP1.6J, OCPP 2.0.1
      Payment method
      Credit card, QR code, RFID card, autocharge
      EMC
      Class A (industrial)
      Protection
      Undervoltage protection, overvoltage protection, DC overcurrent protection, over-temperature protection, surge protection device, emergency stop protection
      Barrier free design
      Yes
      STANDARDS AND CERTIFICATIONS
      Standards
      IEC 61851, IEC 62196, DIN 70121, ISO 15118, etc.
      Certifications
      CE, RED, MID compliant
