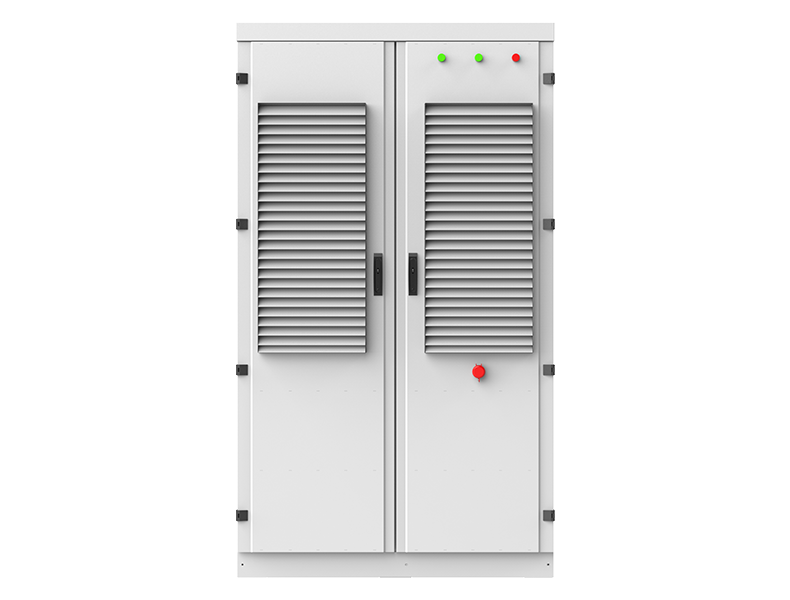

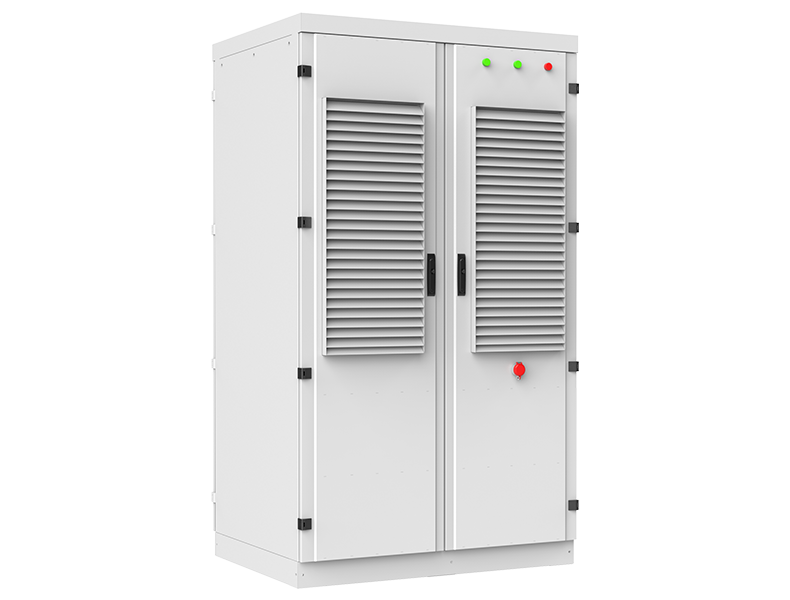

                                • 750kW HVDC Cabinet
                                Engineered to support high-voltage PV and battery systems with integrated MPPT, offering seamless compatibility for DC microgrid integration.
                                User Manual
                                User Manual
                                Specification
                                Datasheet
                                Certificates
                                UL1741
                                IEC EN 62109-1
                                IEC EN 61000
                                User Manual
                                x
                                User Manual
                                Specification
                                x
                                Datasheet
                                Certificates
                                x
                                UL1741
                                IEC EN 62109-1
                                IEC EN 61000
                                24 / 7 Service
                                Seamlessly Integrated
                                Download
                                Contact Us Now
                                24 / 7 Service
                                Seamlessly Integrated
                                Download
                                Contact Us Now
                                Key Application Scenarios
                                Peak Shaving
                                Peak Shaving
                                Balancing grid loads by storing low-cost off-peak energy and discharging during peak demand to optimize infrastructure utilization.
                                Renewable Energy Integration
                                Renewable Energy Integration
                                Smoothing the volatility of solar and wind power to minimize curtailment and ensure a stable, dispatchable green energy supply.
                                Frequency Regulation
                                Frequency Regulation
                                Leveraging millisecond-level response to maintain grid frequency stability and counteract instantaneous power fluctuations.
                                Black Start Support
                                Black Start Support
                                Providing initial excitation and voltage reference to reboot the grid and restart power plants after a total system blackout.
                                Specification
                                PDS1-750K-H DC-DC Converter
                                Battery Side
                                Maximum DC voltage1500V
                                Voltage range500-1500V
                                Nominal voltage1000V
                                Nominal current750A
                                Maximum current825A
                                Bus Side
                                Maximum DC voltage1500V
                                Voltage range500-1500V
                                Nominal voltage1000V
                                Nominal current750A
                                Maximum current825A
                                Physical
                                CoolingForced air cooling
                                Noise＜85dB
                                EnclosureIP54
                                Max elevation3000m (> 3000m derating)
                                Operating temp.-20°C to 50°C (De-rating over 45°C）
                                Humidity0~95% (No condensing)
                                Size (W*H*D)1200*2100*970mm (TBD)
                                WeightCabinet 292kg + Module 51kg*n (n=1,2,...,8)
                                InstallationFloor Standing
                                Other
                                Peak efficiency98.96%
                                AUX power supplyBuilt-in
                                ProtectionOTP, EPO, Fan/Relay Failure, OLP, Reverse connection protection
                                Configurable protection limitsBattery EOD voltage.
                                Cable EntryBottom
                                Communication protocolsModbus TCP/IP
                                Communication socketsRS485, CAN, Ethernet
                                IsolationNon-isolation
                                System monitoringReal-time monitoring with automated alerts and data storage
                                Features
                                Flexible Configuration
                                Flexible Configuration
                                100kW to 750kW by1 to 8 power modules
                                Wide DC range: 500Vdc-1500Vdc
                                Automatically bidirectional
                                High Efficiency & Stablility
                                High Efficiency & Stablility
                                Peak efficiency can reach 98.96%
                                Multi-string technology for better battery safety and performance
                                Intelligent Collaboration
                                Intelligent Collaboration
                                2/4 inputs or 1 output
                                Multiple MPPTs
                                Compatible with various types of battery systems
                                Safety & Compatibility
                                Safety & Compatibility
                                Multiple-string with controls on individual module or group of modules
                                Flexible applications with PV & Battery
