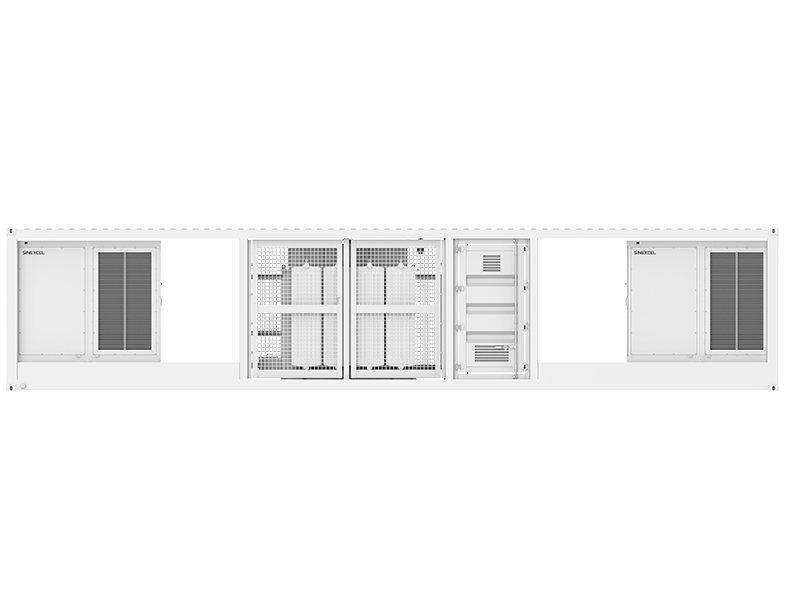

      • 40ft 5.16/6.9MW Modular MV Station
      The ultimate utility-scale powerhouse, scaling up to 6.9MW through seamless four-unit PCS integration.
      24 / 7 Service
      Seamlessly Integrated
      Contact Us Now
      24 / 7 Service
      Seamlessly Integrated
      Contact Us Now
      Features
      Flexible Configuration
      Flexible Configuration
      • Integrated inverter and booster,highly compact
      • Improves space efficiency, easier installation
      • Modular, configurable power
      High Efficiency & Stability
      High Efficiency & Stability
      • 1500V wide-range DC voltage
      • Multi-branch DC design prevents battery looping currents
      Extensive Use
      Extensive Use
      • With active/reactive four- quadrant adjustment function
      • VSG / PQ / VF mode capabilities
      • Deployment on demand. Peakshaving and local automatic operation
      Safety & Compatibility
      Safety & Compatibility
      • With LVRT RT and HVRT
      • 4-quadrant active and reactive power control
      • Fast power response (<20ms)
      Key Application Scenarios
      Peak Shaving
      Peak Shaving
      Balancing grid loads by storing low-cost off-peak energy and discharging during peak demand to optimize infrastructure utilization.
      Renewable Energy Storage
      Renewable Energy Storage
      Smoothing the volatility of solar and wind power to minimize curtailment and ensure a stable, dispatchable green energy supply.
      Frequency Regulation
      Frequency Regulation
      Leveraging millisecond-level response to maintain grid frequency stability and counteract instantaneous power fluctuations.
      Black Start Support
      Black Start Support
      Providing initial excitation and voltage reference to reboot the grid and restart power plants after a total system blackout.
      Specification
      SES4H-5160 6020-MV-EX
      AC AND DC PARAMTER
      Rated AC PowerN*215kW@45°C，N*129kW@50°C, shut down@60°C( N for number of modules, 20 ~32 )
      Maximum Power110% * Rated Power, 2min (≤45°C)
      AC Voltage10kV-33kV（Consult with Sinexcel for other voltage level）
      AC Frequency50Hz
      DC Voltage Range1000~1500V (1070~1500V for full load discharging)
      Number of DC BUS4/32
      Max. DC Current per Branch1612A/201A
      THDi/THDu<3%
      LC AND AUXILIARY EQUIPMENT
      Aux. Transformer50kVA, 690V\V\4\400V, 50Hz, 3P4W
      UPSUp to 2kVA (1h standard)(Consult with Sinexcel for more capacity)
      MeterMeters for Aux. Power Consumption and PCS
      Communication MethodRS485, CAN, TCP/IP(via switch)
      Cooling MethodTemperature controlled forced air cooling
      TRANSFORMER
      Capacity5200kVA @45°CBased on PCS rated power
      6900kVA@45°CBased on PCS rated power
      Transformer TypeOil-immersed transformer
      Transformer ProtectionProtection relay for pressure, temperature (two levels)and gas.
      Winding Vector GroupDy11y11(Consult with Sinexcel for customized)
      MV AC Voltage Leve12/24/36kV（Consult with Sinexcel for other voltage level）
      LV AC Voltage690V（Consult with Sinexcel for other voltage level）
      AC Frequency50Hz
      EfficiencyTier 2(From EU548)
      Transformer Impedance7%~8%
      Cooling TypeONAN(Based on projoject requirement)
      Insulation LevelClass A
      CONNECTION AND PROTECTION
      Switchgear ConfigurationDeV\CV\CCV\VMV(Customized)(Consult with Sinexcel for customized)
      Switchgear ProtectionMedium-voltage vacuum circuit breaker(V)
      Internal Arc Classification medium-voltage Control Room (according to IEC62271-202)20kA 3s
      LV-MV ConnectionsCopper bar or cable
      LV ProtectionMotorized CB in PCS
      MV ProtectionMicrocomputer protection
      DC ProtectionCircuit Breaker and Fuses
      GENERAL PARAMETER
      Size (W*H*D)40ft: 12192*2896*2438 mm 45ft:13716*2896*2438mm
      PCS NumberOptional: 2/3/4/4
      Weight≤30t
      EnclosureIP54 for Overall
      Corrosion PreventionC5 (Only applicable to external mechanical part)
      Operating Temp.-25 ℃ to 60 ℃ (De-rating over 45 ℃)
      Storage Temp.-50 ℃ to 70 ℃
      Max. Elevation0~95% (No condensing)
      Storage Humidity0~100% (No condensing)
      Max. ElevationStandard 1000 m(Consult with Sinexcel for other elevation)
      Inverter Max. Efficiency98.5%
      Voltage Regulation Accuracy≤±1%
      Current Regulation Accuracy≤±1%
      CERTIFICATION
      ComplianceIEC62477/IEC61000/G99/VDE4110/VDE4120/EN50549-2(Consult with Sinxcel for more certification information )
