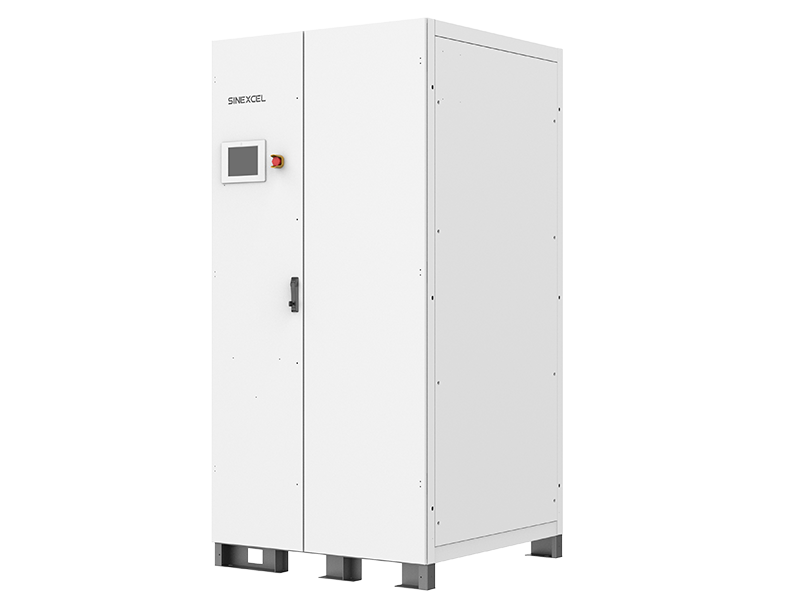

500kW Modular PCS Cabinet

Versatile for front-of-the-meter applications from generation to grid, featuring high-speed bi-directional power conversion between AC and DC.

x

x

24 / 7 Service

Seamlessly Integrated

24 / 7 Service

Seamlessly Integrated

Features

Flexible Configuration

Flexible Configuration

62.5kW to 500kW by 1 to 8 power modules.

3P3W AC output for 400/480/208/690Vac interconnection w/ external transformer

High Efficiency & Stability

High Efficiency & Stability

Maximum efficiency up to 98.2%

Multi-string technology for better battery safety and performance.

Extensive Use

Extensive Use

Multiple battery strings work in parallel or independently to allow easy power and energy expansion.

Compliance & Compatibility

Compliance & Compatibility

Compatible with various types of battery systems

Global grid certified & listed

Specification

PWS1-500KTL-EX Power Conversion System

PWS1-500KTL-NA Power Conversion System

Utility-interactive Mode

Battery voltage range

50/60(-2.5~2.5) Hz

400(-15%~15%) Vac

Stand-alone Mode

Nominal AC output power

AC output voltage

Battery voltage range

50/60(-2.5~2.5) Hz

380/400(±10% configurable) Vac

≤2%（Linear load）

Operating ambient temperature

Forced air cooling

NEMA1 IP20 and optional IP54 with outdoor cabinet

3000m/10000feet (> 3000m/10000feet derating)

-20°C to 50°C (De-rating over 45°C)

0~95% (No condensing)

1100×2160×800 mm

RS485, CAN, Ethernet

CE LVD IEC 62477，CE EMC IEC 61000 EN 50549-1:2019，EN50549-2 G99，AS4777.2:2020，VDE 4110，CE10-16 Synergrid listing

Utility-interactive Mode

Battery voltage range

60(-2.5~2.5) Hz

380/400(-15%~15%) Vac

Stand-alone Mode

Nominal AC output power

Battery voltage range

60(-2.5~2.5) Hz

≤2%（Linear load）

Operating ambient temperature

Forced air cooling

NEMA1 IP20 and optional IP54 with outdoor cabinet

3000m/10000feet (> 3000m/10000feet derating)

-20°C to 50°C (De-rating over 45°C)

0~95% (No condensing)

1100×2160×800 mm

97% w/o transformer

RS485, CAN, Ethernet

ETL listed conforming to UL1741 / FCC / IEEE1547 / CSA 22.2 CPUC RULE 21 / HECO RULE 14
