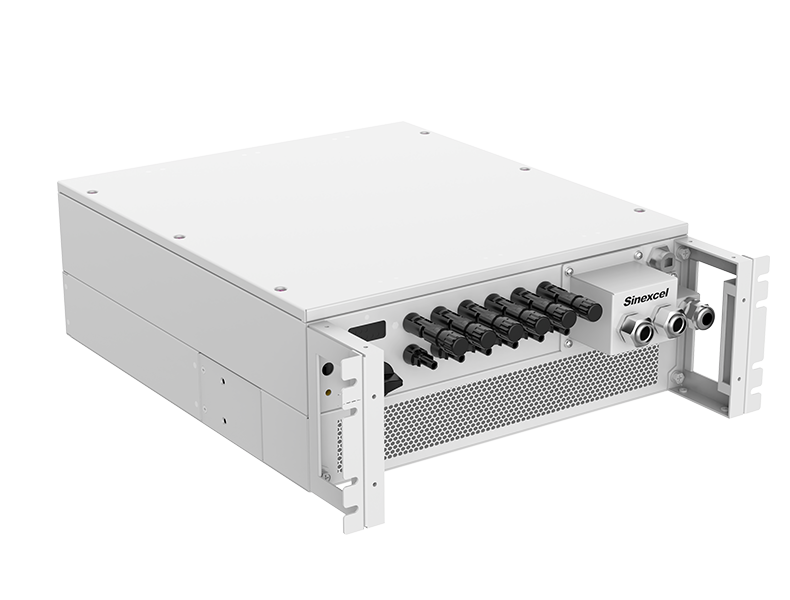

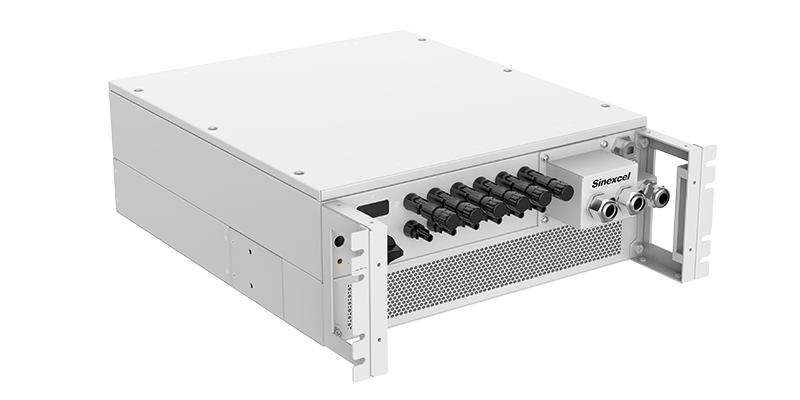

                                • 45kW/60kW PVDC Module
                                A high-efficiency 45kW/60kW DC-DC converter module for DC-coupled solar-plus-storage systems.
                                User Manual
                                User Manual
                                Specification
                                Datasheet
                                Certificates
                                61000 CE-EMC Cert
                                62109,62477 CE-LVD Cert
                                UL1741,CSA Cert
                                MPPT Efficiency Test Report
                                MTBF
                                MPPT Test Report
                                User Manual
                                x
                                User Manual
                                Specification
                                x
                                Datasheet
                                Certificates
                                x
                                61000 CE-EMC Cert
                                62109,62477 CE-LVD Cert
                                UL1741,CSA Cert
                                MPPT Efficiency Test Report
                                MTBF
                                MPPT Test Report
                                24 / 7 Service
                                Seamlessly Integrated
                                Download
                                Contact Us Now
                                24 / 7 Service
                                Seamlessly Integrated
                                Download
                                Contact Us Now
                                Key Application Scenarios
                                Industrial Parks
                                Industrial Parks
                                Optimizes energy efficiency and manages peak loads for manufacturing facilities, turning energy from a cost into an asset.
                                Remote Areas
                                Remote Areas
                                Builds a resilient local microgrid to ensure 24/7 power availability where the main grid is weak or non-existent.
                                Commercial Buildings
                                Commercial Buildings
                                Provides smart energy management and emergency power backup for office towers, data centers, and hospitals.
                                Data Centers
                                Data Centers
                                Acts as a robust power backup to guarantee data security. The modular architecture allows for "pay-as-you-grow" expansion, perfectly matching the increasing IT load.
                                Specification
                                PDS1-45M
                                PDS1-60M
                                PV Side
                                Rated Power45kW
                                Rated Input Voltage600V
                                Maximum Input Voltage1100V
                                Start-up Voltage250V
                                MPPT Voltage Range200~830 V (430~750 @full load )
                                Number of MPPT3
                                Number of MPPT Input String per Circuit2
                                Maximum Input Current of each MPPT35A/35A/35A
                                DC Bus Side
                                Rated Allowable Power45kW
                                Maximum Output Voltage700V
                                Working Voltage RangePV voltage+40V~830V
                                Rated Current65A
                                Maximum Working Current65A
                                Protections
                                PV Reverse Connection ProtectionYes
                                Insulation Impedance DetectionYes
                                PV Side SwitchYes
                                Temperature ProtectionYes
                                DC Arc DetectionOptional
                                PID RepairmentOptional
                                PV SPDL2 Lightning Protection
                                Bus SPDL2 Lightning Protection
                                Terminal Type
                                DC Bus terminalOT
                                PV TerminalMC4
                                General Specification
                                Peak Efficiency>99%
                                Dimension(W*H*D)440*175*580mm
                                Weight22kg
                                Noise≤70dB
                                IP RatingIP66
                                Operating Temperature-20~60°C
                                Cooling MethodAir Cooling
                                Operating Humidity0~95% (No Condensation)
                                Operating Altitude4000m (>3000m derating)
                                Display and Communication
                                DisplayLED
                                CommunicationRS485, RS232 (Reserve), CAN (Reserve)
                                InstallationWall Mounting/ Module
                                Safety CertificationIEC62109-1, UL 1741
                                PV Side
                                PV Side60kW
                                Rated Input Voltage600V
                                Maximum Input Voltage1100V
                                Start-up Voltage250V
                                MPPT Voltage Range200~1000V (575~900 @full load)
                                Number of MPPT3
                                Number of MPPT Input String per Circuit2
                                Maximum Input Current of each MPPT35A/35A/35A
                                DC Bus Side
                                Rated Allowable Power60kW
                                Maximum Output Voltage700V
                                Working Voltage RangePV voltage+40V~1000V
                                Rated Current86A
                                Maximum Working Current86A
                                Protections
                                PV Reverse Connection ProtectionYes
                                Insulation Impedance DetectionYes
                                PV Side SwitchYes
                                Temperature ProtectionYes
                                DC Arc DetectionOptional
                                PID RepairmentOptional
                                PV SPDL2 Lightning Protection
                                Bus SPDL2 Lightning Protection
                                Terminal Type
                                DC Bus terminalOT
                                PV TerminalMC4
                                General Specification
                                Peak Efficiency>99%
                                Dimension(W*H*D)440*175*580mm
                                Weight22kg
                                Noise≤70dB
                                IP RatingIP66
                                Operating Temperature-20~60°C
                                Cooling MethodAir Cooling
                                Operating Humidity0~95% (No Condensation)
                                Operating Altitude4000m (>3000m derating)
                                Display and Communication
                                DisplayLED
                                CommunicationRS485, RS232 (Reserve), CAN (Reserve)
                                InstallationWall Mounting/ Module
                                Safety CertificationIEC62109-1, UL 1741
                                Features
                                Flexible Configuration
                                Flexible Configuration
                                Compatible with a 19-inch rack for easy installation
                                Modular design
                                High Efficiency & Stability
                                High Efficiency & Stability
                                High power density
                                Maximum power up to 45kW
                                Extensive Use
                                Extensive Use
                                Built-in MPPT *3
                                Wide voltage range of 200~810V
                                Support controllable by PCS & EMS
                                Safety & Compatibility
                                Safety & Compatibility
                                Active protections
